Trailed Mechanical Seed Drill
A seed drill is a device used in agriculture that sows seeds for crops by positioning them in the soil and burying them to a specific depth. This ensures that seeds will be distributed evenly.
Our offered mechanical seed drill sows the seeds at the proper seeding rate and depth, ensuring that the seeds are covered by soil.
Available on request. Place your order today!
-
Delivery: We deliver on time, within 3 to 7 days
-
Secure Payment:
Enjoy safe encrypted payments
-
Returns and Refunds: Your money is safe with us

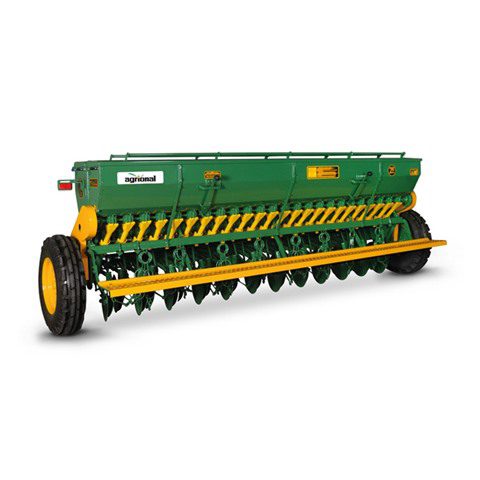

Trailed Mechanical Seed Drill
Agrional Trailed Mechanical Seed Drill, pulled by a tractor, sows the land with grains and similar seeds together with fertilizer at the same row with required quantity and depth continuously. The combined seed drill can be used with any type of tractor and in all conditions of the soil.
Seed drills which are manufactured with 12, 14, 16, 18, 20, 22, 24, 26, 28 sowing units have an automatic system for adjusting the motion gear system and sowing units mechanically for sowing position and transportation position.
Features/Pros
- It is made using high-quality materials.
- It is easy to use and easily adjustable due to its special construction.
- The trailed mechanical seed drill is extremely durable and sturdy.
- It consists of a big volume fertilizer box.
- The depth of the discs could properly be adjusted from both pressure handles and disc colter spring for any kind of soil.
- The colter discs can be in reverse directions if you prefer.
- The safety pins at the automatic system are operated when seed cells become tight and colter discs are used for cutting the transmission of the gears. This system prevents damages to the seeder.
- The wheels can be adjusted according to preference.
- Sieve prevents foreign materials from entering into the fertilizer hopper and protects the fertilizer cells from damage.
- The mixer system in the fertilizer hopper provides a means to smash the fertilizer for high productivity.
- The lids of the seed and fertilizer hoppers are opened independently from each other for easy loading and to prevent mixing seeds and fertilizer.
- With the help of a spring discharge system in feed cells, big seeds like bean and chickpea can be sowed.
Technical Specifications
| Model | Weight (kg) | Length (mm) | Width (mm) | Height (mm) | Trace Width (mm) | Working Width (mm) | Distance Between Seeder Foot (mm) | Tire Dimensions | Seed Capacity (kg) | Fertilizer Capacity (kg) |
| AGM-HM 12 | 650 | 3000 | 2415 | 1450 | 2420 | 1870 | 140 | 750×16 | 260 | 210 |
| AGM-HM 14 | 750 | 3000 | 2700 | 1450 | 2710 | 2150 | 140 | 750×16 | 290 | 230 |
| AGM-HM 16 | 820 | 3000 | 3000 | 1450 | 3000 | 2430 | 140 | 750×16 | 310 | 250 |
| AGM-HM 18 | 900 | 3000 | 3270 | 1450 | 3280 | 2720 | 140 | 750×16 | 340 | 270 |
| AGM-HM 20 | 970 | 3000 | 3550 | 1550 | 3550 | 3000 | 140 | 750×16 | 370 | 290 |
| AGM-HM 22 | 1050 | 3000 | 3795 | 1550 | 3665 | 3190 | 140 | 750×16 | 400 | 310 |
| AGM-HM 24 | 1140 | 3000 | 4040 | 1550 | 3780 | 3380 | 140 | 750×16 | 430 | 330 |
| Weight | 650000 g |
|---|---|
| Item Type | |
| Class | |
| Item Condition | , |
| Suitable For | |
| Features | |
| Seed Distribution |
Mechanical |
